Double Vision : UE5 Disorientation System

Add double vision and visual distortion effects to gameplay and UI using a fully Blueprint-based system.

Double Vision UE5 effect

What This System Does

Double Vision is a Blueprint system that applies visual disorientation effects such as double vision, distortion, and blur to both gameplay and UI.

It is designed for impact feedback scenarios like explosions, damage, or status effects.

Key Features

  • Double Vision & Distortion Effects

  • UI and World-Space Support

  • Blueprint-Only Integration

  • Configurable Intensity & Duration

  • Lightweight and Runtime-Friendly

Double Vision Video Demos

Use Cases

  • Explosion / grenade impact

  • Low health feedback

  • Poison /Drunk/ status effects

  • Cinematic sequences

How To Use The System

  • Double Vision works through Post Process Material. Navigate to the following path and you should find the actor that you can add to any level you’d like to have the double vision effect applied to:


					DoubleVision/Blueprints/BP_DoubleVisionPPActor

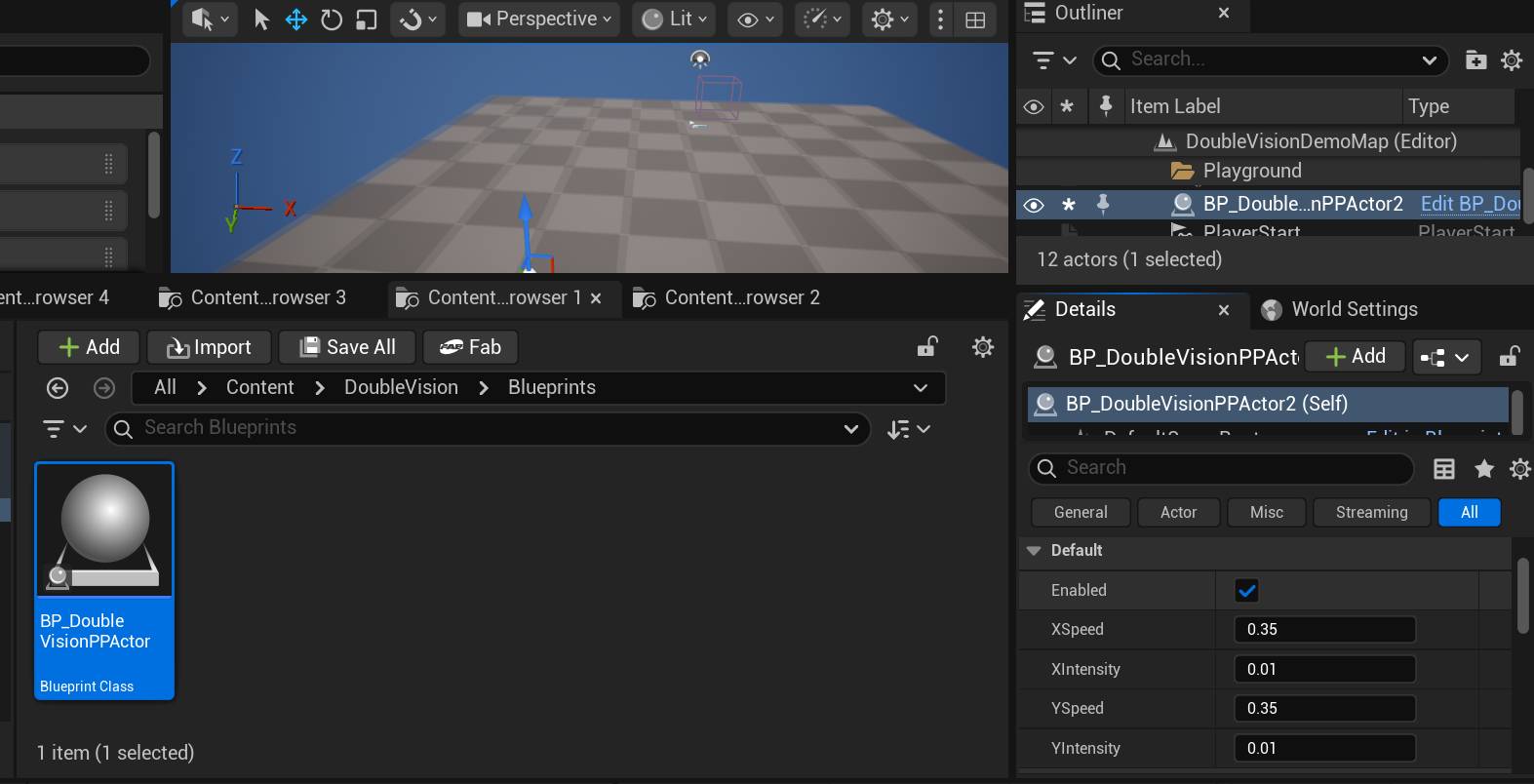

Once you add this actor to a level , the double effect system should immediately start affecting the scene. You can tweak its setting on the details panel of the instance.

double vision effects

Enabled: This boolean/switch turns the effect on or off.

XSpeed: This value determines how fast the effect is applied on the X Axis

XIntensity: This value determines how intense the effect is applied on the X Axis.

Playing with these values will give you a better idea of what they do.

Driving the system at runtime

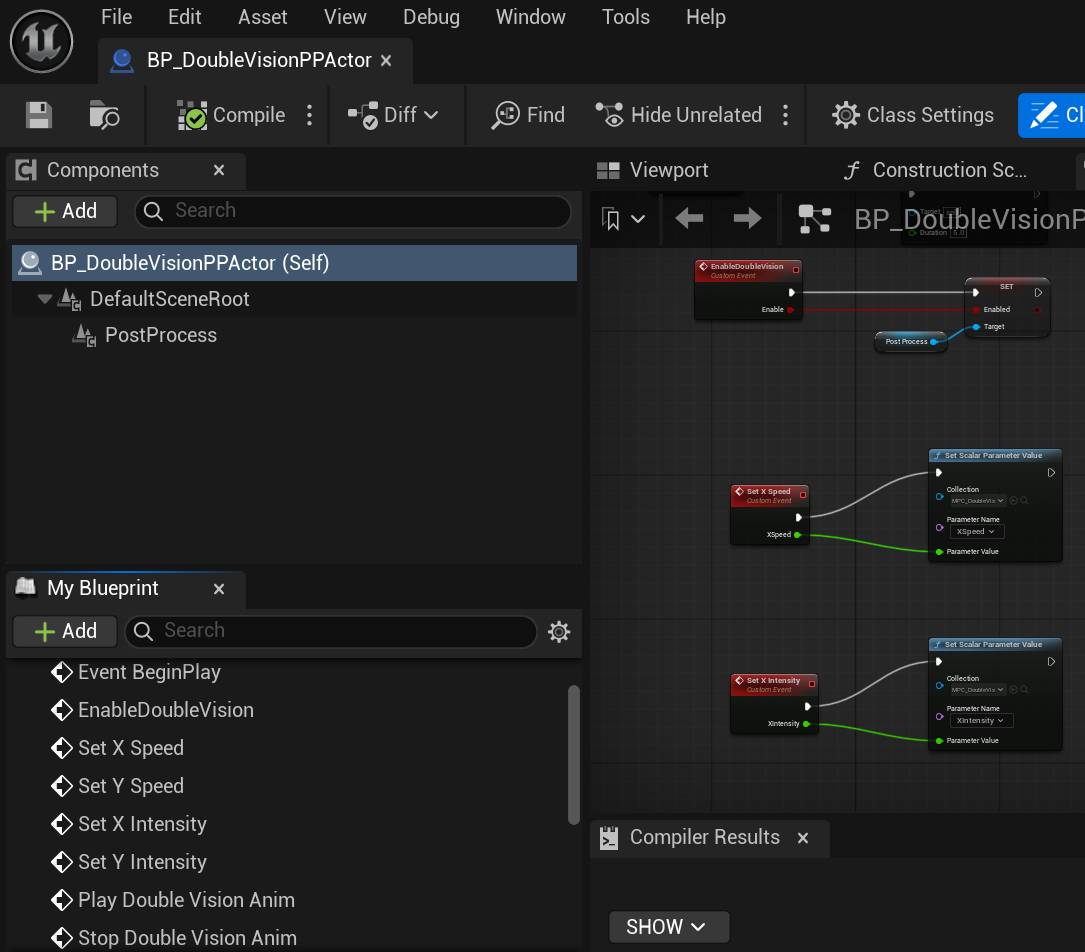

The Double vision Actor has events you can call from the level or blueprints to control when the system is activated and how intense it is.

Double Vision Runtime functions

EnableDoubleVision: Call this from anywhere to turn the effect on or off.

Set X Speed: Call this to change the XSpeed value at runtime

Set X Intensity: Call this to change the XIntensity value at runtime

Play Double Vision Anim: Call this to temporarily Turn on the effect and turn it off automatically based on the duration you pass in.

Double Vision For UMG Widgets

Typically Post process does not apply to widgets… But the system has a way to apply the same effect to widgets. Open the following Widget blueprint to see how to do so:


					DoubleVision/Widgets/WBP_DoubleVisionWidgetExample

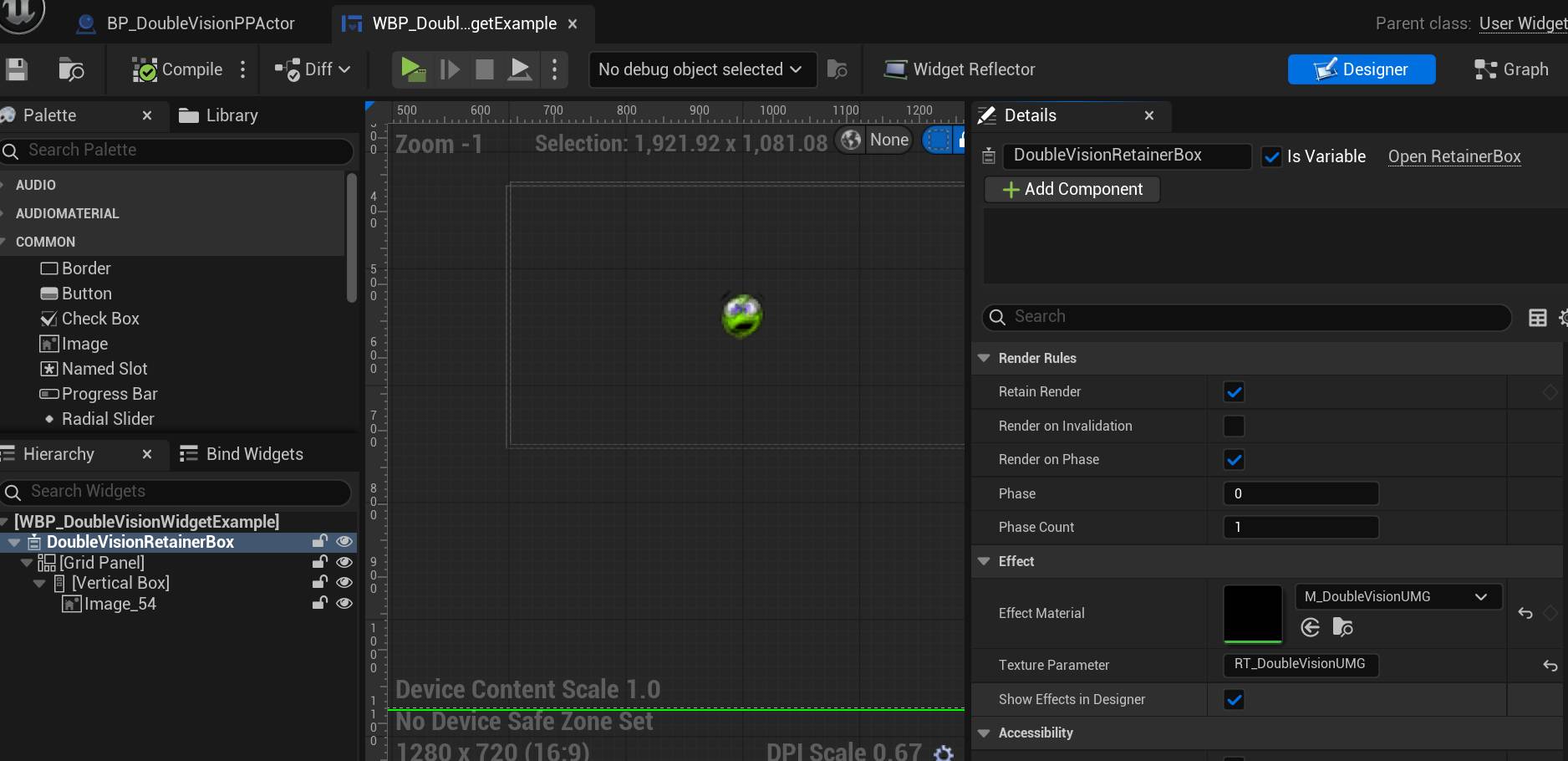

In short , if you have a widget, wrap it in retainer box and set up the retainer rules and effect like the image above.


The effect material must be DoubleVision/Materials/M_DoubleVisionUMG


The Texture Parameter should be RT_DoubleVisionUMG
